Description

The WatchAI Network Video Recorder – brought to you by – Big Kev’s Technology

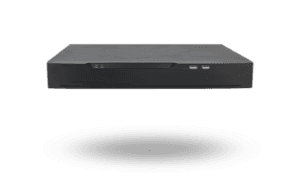

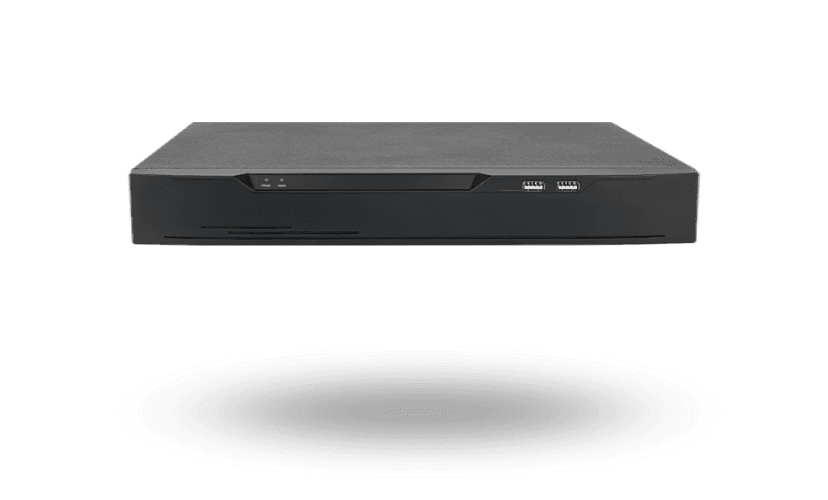

This NVR is an 8-channel 1 x hard drive Network Video Recorder (NVR) equipped with 8 Power over Ethernet (PoE) ports. It is designed for advanced surveillance systems, offering high-resolution recording and playback capabilities.

Key Features

• Up to 8 x channel IP cameras access
• Up to 1 x channel @ 8MP / 4-ch @ 1080P / 8-ch @ D1 decoding/playback capacity
• 1 x SATA hard disk slot supporting up to 8TB – not included
• Plug & Play with 8 PoE Ports to power your IP Cameras
• Supports 1 x HDMI and 1 x VGA interface, with a maximum HDMI resolution of 4KVideo Input & Decoding
  • 8ch H.265/H.264 IPC
  • Maximum Decoding: 1-ch at 8MP, 4-ch at 1080P, or 8-ch at D1
  • Input and Output Bandwidth: 40 Mbps

  Ports & Interfaces

  • 1 HDMI and 1 VGA Output (Maximum HDMI Resolution: 4K)
  • 1 Audio Out Channel
  • 3 USB Ports
  • 1 RJ45 Network Port
  • 8 PoE Ports (Plug and Play)

  Storage & Display

  • 1 SATA Slot (Supports 1–8TB HDD – not included)
  • Power Supply: DC48V / 1.25A
  • Multi-screen Display Modes: 1, 4, or 9 Grid View

  Protocols & Playback

  • Supports ONVIF, SDK, CGI, and P2P
  • Synchronous Playback: 8, 4, or 1 Channel

    Need a Camera – check out the turret low light night vision cameras here.

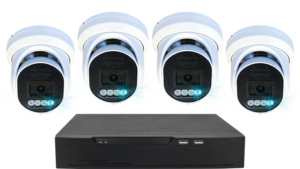

  Consider purchasing the bundle – 4 x 8Mp IP Cameras and 1 x Network Video Recorder complete as per the picture below.
